Introduction to ISP eMMC Pinout
The Samsung Galaxy A05 SM-A055F is a budget-friendly smartphone, and its ISP (In-System Programming) eMMC pinout is vital for advanced repairs like FRP bypass, firmware flashing, or reviving a bricked device. This guide explains how to locate the test point and connect the ISP pinout for effective troubleshooting.
Tools Required for ISP Connection
Before starting, gather these tools:
- Plastic pry tool for safe disassembly
- Screwdriver set for removing screws
- UFI Box, Easy JTAG Plus, or similar ISP tool
- Tweezers for precise connections
- Reliable schematics (e.g., from MobileRdx or GSM Africa)
Locating the Test Point

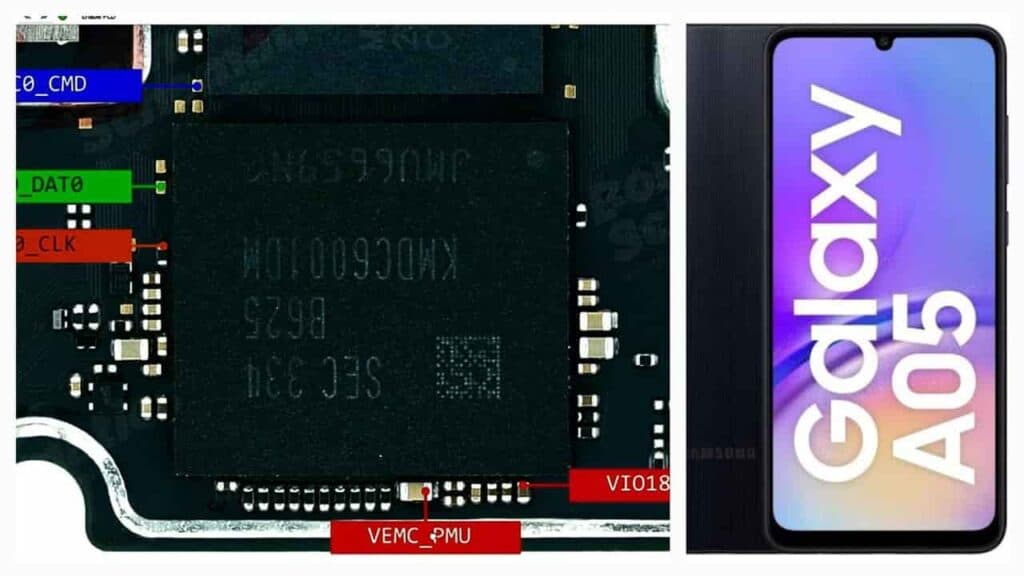

To begin, power off the device and carefully remove the back cover using a plastic pry tool to avoid damage. Unscrew and remove any shielding to access the motherboard. The test point for the SM-A055F is a small metal pad near the eMMC chip. Refer to trusted sources like hostingunlock.com for accurate pinout diagrams to avoid errors.
Connecting the ISP Pinout
The ISP pinout involves connecting to specific points: CMD, CLK, DAT0, GND, and VCCQ. Use your ISP tool to attach wires to these points. To enter BROM (Boot Read-Only Memory) mode, short the test point to ground while connecting the USB cable, holding the Volume Up and Down buttons simultaneously, as suggested by repair forums.
Performing Repairs
With the device in BROM mode, use software like UMT or ChimeraTool to perform tasks such as FRP removal or firmware flashing. Ensure the device is detected in the software and double-check all connections to prevent damage.
