Hey tech enthusiasts! Ready to dive into the world of Samsung Galaxy M31 SM-M315 repairs? Today, we’re breaking down the ISP UFS Pinout and Test Point—your key to unlocking advanced mobile repair techniques!
What Are ISP Pinouts and Test Points?
In-System Programming (ISP) is a game-changer for accessing a phone’s Universal Flash Storage (UFS). The Samsung Galaxy M31, rocking UFS 2.1, relies on ISP pinouts for tasks like data recovery, firmware flashing, or bypassing locks. Test points? They’re the tiny spots on the motherboard where you connect ISP tools to work your magic.
How to Find Them on Galaxy M31 SM-M315
Let’s get hands-on! To locate the ISP pinout and test point:
- Power Down & Open Up: Switch off the phone and carefully remove the back cover. Disconnect the battery to stay safe.

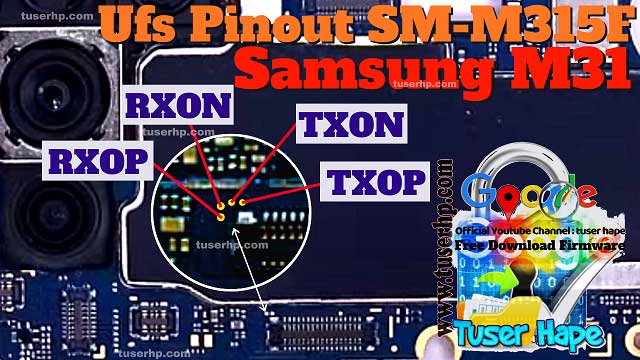

- Spot the UFS Chip: On the motherboard, find the UFS chip. Nearby, you’ll see ISP pinouts—small copper pads labeled RXON, RXOP, TXON, and TXOP.
- Locate Test Points: These are exposed copper contacts on the motherboard, perfect for ISP tool connections.
Need Samsung Galaxy M31 SM-M315 ISP UFS Pinout & Test Point? Get accurate diagrams, tested solutions, and expert tips to fix dead boot, FRP, or flash issues easily.
Pro Tips for Success
- Use a Circuit Diagram: Check trusted tech websites for accurate ISP pinout images specific to the SM-M315.
- Grab the Right Tools: Tools like UFI Box or EasyJTAG are your best friends here.
- Verify with a Multimeter: Avoid short circuits by double-checking test points before connecting.
- Stay ESD-Safe: Wear a grounding strap to protect the device from electrostatic discharge.
Why It Matters
Mastering ISP pinouts can save bricked devices or recover precious data. But caution—wrong connections can fry your phone! Always use the right software and firmware for seamless results.
Explore reliable tech forums for detailed diagrams and join the repair community to level up your skills. Got questions? Drop them below, and let’s geek out together!
